HALF PIPE WRAP

Half Pipe Wrap has been exhaustively used in the past as a method for fixing relinquishes in seaside pipelines. They are conceivable to gain some restricted experiences to frustration when they have a utilization to fix deserts in pipelines presented to a high proportion of cyclic pressurization. Therefore, Reli Sleeve manufactures the most reasonable best grade half wipe wraps everything being equivalent, divider thickness, and grades of steel plates which are to ASTM affirmations.

Half Pipe Wrap and sleeve are extensively recognized for fix, restoring, and keeping up the functionality of hurt or defective pipelines. Fixing your pipeline transforms into an easier, dynamically beneficial movement when RELI-SLEEVE’S half pipe wrap and Sleeve are used. You can depend upon additional reserve funds, as it is easier to present RELI-half pipe wrap and Sleeves. Our quality control process ensures that for the most part consistent and most noteworthy available in the pipeline business today. Snap here for Half Pipe Sleeve. Click here for Half Pipe Sleeve.

Half Pipe Wrap has customarily been a device usually used to fix blames in inland pipelines all in all. The discoveries of this investigation uncovered that an effectively amassed steel sleeve came back to in any event 100 percent of SMYS the quality of a flawed bit of channel. The key to making a sleeve appropriately is the utilization of any demonstrated strategy and expert staff. Sleeves produced using plastic are utilized to fix blemishes like:

•       Leaks
•       Dents
•       Gouges
•       Cracks
•       Metal loss
•       Other anomalies such as coating damages, buckle etc limited to the sleeve specification

The fix strategy comprises of crease welding around the influenced bit of two half part pipes with an internal breadth equivalent to the external measurement of the pole. There are two kinds of steel sleeves which are utilized to fix pipelines. Type A sleeves that are simply crease welded without welding the finishes to the bearer funnel, and Type B that is welded at the closures prompting a full weight control around the injury. Furthermore, a semi-fluid covering can be utilized to fill and solidify any gaps between the sleeve and the transporter pipe in the annular region.

Through work drove by Kiefner at Battelle in the mid-1970s, the utilization of complete circle steel sleeves for pipeline fix created. Until this it was entirely expected to fix by removing and expelling the wrecked part. There are two primary types of steel sleeve full-dissemination.

Type A sleeves circle the pipeline and give the deficient territory basic fortification. They don’t require sleeve-end filet welds to do this. Type B sleeves likewise surround the pipeline and give basic fortification, yet since the closures are filet welded to the pipeline, they may likewise contain pressure on the off chance that the deformity spills or in the end spills during ensuing help. During work at Southwest Research Institute and Battelle in the late 1980s, the utilization of fiber-fortified composite materials for pipeline fixes was created, as per Fawley and Stephens et al. There are two essential sorts of composite fix frameworks; pre-shaped (composite sleeves) and wet lay-up (composite wraps).  In the mid-1990s the utilization of wet lay-up frameworks for pipeline fix started. These wet lay-up frameworks utilize either a sap impregnated tissue initiated by field water or tissue soaked with an epoxy pitch in the field.

Type A and B sleeve was utilized for basically connecting a pipeline rather than a roundabout weld. Since a sort B-sleeve can have a huge weight or potentially longitudinal weight on the cylinder from horizontal burdens, it ought to be intended to convey the transporter channel’s most extreme weight. This ought to likewise be appropriately produced and tried to guarantee its consistency.

Names: Full Circle Sleeve, Full Cleaning Sleeve, type A Sleeve, type B Sleeve, Half Pipe Sole, Split Sleeve, Half Pipe Cap, Half Pipe Wrap and so on.

As a widely acclaimed Pipeline Repair Exporter Sleeve, Half Repair Sleeve is focused on providing each client with the most elevated level of client assistance. We showcase a wide assortment of Half Pipe Sole pieces in the Indian and Overseas round trip pack, for example, Singapore, Thailand, and Indonesia.

Considerably more perplexing is the instrument by which composite materials fortify harm regions on the working pipelines. Albeit composite plastics have equivalent solidarity to line pipe steel, the flexible modulus is impressively littler. To request to keep a composite material from bursting, the defect, as a rule, needs to twist plastically to the course of progress of the heap to the part. The Brittle funnel material or creases can withstand just an extremely constrained volume of plastic weight before a channel or crease flaw extends and falls flat.

A high-compressive quality filler material is utilized to fill deformity regions on both steel sleeves and composite substitutions, so the heap is effortlessly passed to the fixing material.

The pertinence of Type A sleeves and composite fixes is indistinguishable, with a couple of special cases. The two models are fix of bend consumes, where Type A sleeves can be utilized without the full disposal of metallurgically modified material while composite fixes are not doable, and fix of hydrogen-instigated splitting (HIC) and rankling where Type A sleeves can be utilized and composite fixes are a bit much. Both of these special cases are the aftereffect of composite materials having a fundamentally lower flexible modulus than that of steel.The composite fixes require these deformities to strain enough to make them crumple or extend because of exhaustion because of the lower versatile modulus and the affectability of these imperfections to an endless supply of similarly little amounts of strain.

Then again, Type B sleeves can be utilized to fix a wide assortment of imperfections for which composite fixes can’t.

Type A sleeves, Type B sleeves and changes to composites are largely appropriate for genuinely shallow to sensibly profound surface erosion (under 80% profundity). Very profound outside erosion (80 percent profundity or more prominent) must be restored by release fitting methodology (for example type B sleeves).

Another claimed advantage of composite replacements is that they are easier to mount than sleeves constructed from steel. While this may be the case for Type B sleeves where specially trained welding techniques and specially qualified welders are needed to weld to an in-service pipe, this is obviously not the case with Type A sleeves. Type A sleeves do not require in-service welding, may have filet-welded overlapping side strips (see Figure 4), and they are very easy to manufacture and install. They can be supplied with the side strips fillet welded to the bottom half of the sleeve so that the only welds needed in the field are the filet welds at the top of the side strips.The welders can quickly make such welds without special preparation or certification. The raw materials used to produce sleeves of type A are significantly less costly than composite materials. Type A sleeves can be manufactured in the field simply by splitting a pipe length equal to, diameter, wall thickness and grade as the line-pipe material. In comparison to plastic materials, sleeves made of steel do not have a finite shelf life. In addition, Type A sleeves’ rigidity and long-term performance are equal to line-pipe steel.
While steel’s long-term performance is well known, the long-term performance of composite materials on buried pipelines beyond around 20 to 25years has not yet been confirmed. Composite materials’ substantially decreased stiffness compared with steel makes the use of composite replacements controversial for application of pipelines undergoing cyclic pressure variations. Cyclic strains in the region of the defect can cause the defect to develop and ultimately fail in subsequent operation.
All Type A sleeves and plastic sleeves rely on the use of an appropriate sealer to avoid the intrusion of highly corrosive materials ( e.g. groundwater) between the carrier pipe and the patch. Corrosion under Type A sleeves may be avoided by either using an elastomeric sealant or a sealant which is hardenable.
Although Type B sleeves need to be welded to the piping (see Figure 5), they can be used when composite repairs are not feasible, such as fixing 80 per cent deep or wider defects, circumferentially directed defects, leakage defects or ultimately leakage defects (e.g. internal corrosion), and cracks. The raw materials used to produce Type B sleeves are considerably less costly than composite materials, and Type B sleeves’ toughness and long-term durability are similar to line-pipe steel’s.
In considering the cost of different maintenance options, it is important to consider both the expense of the material and construction costs. The cost of mobilization and the cost of applying steel sleeves can vary considerably, depending on the availability and the pace of work for welding workers. Although in some cases the mobilization cost for building composite repair may be smaller, the components are more costly. Composite sleeves or wet layup repair kits are typically designed for a set, standard length. When the length of the area awaiting repair is greater than a single plastic sleeve can cover, the use of steel sleeves can be slightly less costly than plastic repairs.

Welds produced on in-service pipelines tend to cool at an accelerated rate as a result of the pipe wall’s ability to remove heat from the flow contents. Accelerated cooling speeds enable the creation of strong weld microstructures vulnerable to cracking hydrogen (see Figure 7).

Hydrogen cracking requires the simultaneous fulfillment of three main, different conditions: hydrogen must be present in the weld, there must be a weak weld microstructure and tensile forces must be acting on the weld.
Simple guidance has been developed and is available elsewhere to prevent cracking of burnthrough as well as hydrogen when welding to an in-service pipeline.

A comparatively common technique is the use of complete encirclement steel sleeves for pipeline repair. As a result, very little is written on the use of steel sleeves compared to the use of composites where the constant launch of new products.

The applicability of Type A sleeves for composite repairs is nearly identical, and their mounting does not require welding to an in-service pipe. Type B sleeves may be used when plastic repairs are not practicable, such as fixing defects that are 80 percent deep or deeper, circumferentially oriented defects, leaking defects, or ultimately leaking defects (e.g. internal corrosion), and fractures.

For both types of half pipe wrap, the raw materials are relatively inexpensive and the stiffness and long-term performance are equivalent to that of line pipe steel.

The establishment of Type B sleeves includes the need to weld to an in-administration pipeline. Adherence to the basic direction summed up here will maintain a strategic distance from the potential concerns related with welding to an in-administration pipeline
.

There are two sorts of full wrap circle sleeves:

• Type An is longitudinally welded along its partner edges yet not welded to the channel at the terminations.

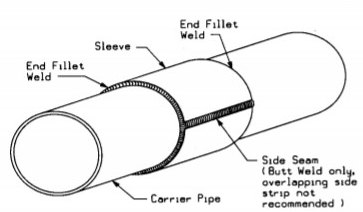

• Type B is welded on the completions to the conveyor pipe despite the longitudinal weld. Type B is the proposed foundation since it is pressure containing.

Sleeve material is recorded in the Pipe Welding methodology (MIP-407) by pipe material/sleeve material portrayal. See Section 5.9.10 and 5.9.11 for circuit weld and long fix lengths. For help, contact the Asset Integrity Team (Pipeline Integrity Technologist).

The sleeve material divider thickness must be resolved to oblige the full arrangement weight of the mainline pipe on which it is presented. Use the going with the formula:

T=… … ..

Where:

Ts= Minimum sleeve thickness in inches (at full structure pressure)

Tp= Minimum channel thickness in inches (at full plan pressure)

Ss= SMYS for the sleeve material in psi

Sp= SMYS for the funnel material in psi

Dp= Outside width of the funnel in inches

The sleeve thickness must be more conspicuous than or equal to the channel divider thickness. Sleeve material of higher SMYS than the pipeline will have a divider thickness proportional to or more conspicuous than the principal pipeline structure thickness. No credit will be taken for the extended SMYS of the sleeve. In case the sleeve thickness is more important than

the channel thickness, the completions of the sleeve must be chamfered at a 45 degree point to a thickness comparable to the pipe.

Analyze the divider thickness.

The trustworthiness of the channel at the filet weld territory must be checked. This may be done using a ultrasonic thickness gage and by visual examination.

The base channel divider thickness at the region where the sleeve will be welded to the pipe is .188 inches.

Set up the direct as depicted in portion 5.6 of this procedure.

Set up the sleeve and fit it to the pipe.

Wire brush the inside surface of the sleeve to oust soil, rust, scale, and other remote materials.

A mechanical office manufactured half sleeve is ordinarily ten feet long and may be cut to the important length in the field. The base length for a sleeve is four crawls for each DOT.

A sponsorship strip is recommended at the longitudinal butt weld to shield the channel from weld hurt. The strip must be in any event 16 measure (.0625 inch thick) delicate carbon steel cut to the length of the half pipe wrap. Join weld the strips to the base bit of each side, with welds around a half inch long and isolated twenty-four inches isolated. Cling to the sleeve maker’s rules, if available.

Exactly when sleeves are used to fix engraves, fill the gouge with a hardening filler material, for instance, epoxy or vehicle body mud before presenting the sleeve.

Recognize the base sleeve, with the sponsorship strips joined, under the channel with the edges of the strip barely reaching the sides of the pipe. Position the top sleeve over the channel using wedges on the completions of the top sleeve’s longitudinal wrinkle to offer breathing space to the help strip to fit underneath the top half.

Plate supports can be used for arranging the top sleeve and can be removed when the most ideal position is gotten. Spreader bar apparatus may be used when dealing with long half sole sleeve zones.

At the point when the half sole sleeves are in closeness to the channel, position the chain catches around the half sole. Chain snaps should be made of a valuable stone, twofold roller type chain. The fixing instrument must be supported by a metal shoe shaped to the condition of the half sole/pipe.

Fix the clasps at a proportionate rate on each snap until the top half sole has cleared the help strips. Presently, the wedges can be ousted. Continue fixing the supports until the half sole is firmly in position.

Clear any hydrocarbon film on the sleeve and channel at the filet weld zone with a sensible dissolvable. This is a noteworthy development and fundamental to ensuring a low-hydrogen weld!

Lessen the weight by 33% of the ordinary working strain to allow the sleeve to share circle pressure. In circumstances where the thing or movement doesn’t allow the strain to be dropped by 33%, counsel the Asset Integrity Team (Pipeline Integrity Technologist) or Technical Services before continuing.

After the weight is diminished, completed last fixing of the sleeves.

The gap of the longitudinal weld groove is fundamental. The opening must be 1/16 inch on each side. Reposition the sleeve or grind the edges to achieve the most ideal gap.

Weld the sleeve per the Pipe Welding procedure (MIP-407).

The sleeve foundation welding system is a low hydrogen API-1107 strategy. Use totally dry low hydrogen anodes and carefully control the size and condition of the circumferential filet weld. The leg of the filet weld should meet the challenge at hand the divider thickness of the pipe. Try an internal went up against filet weld, with streamlined blending into the two people; evade indents and sabotages. The smoother and progressively streamlined the weld, the more unmistakable the insurance from depletion. The longitudinal welds must be done before welding circumferentially type “B” round trip sleeves.

If the domain to be sleeved contains a size weld that may give inconvenience fitting a plain sleeve, an all-encompassing sleeve (now and again called a pumpkin) can be presented giving the material meets the requirements recorded in MIP-407.

If the region to be sleeved is longer than the sleeve material and additional pieces must be used, use one of the going with methodologies:

• Butt weld the sleeves together at each end and radiographically analyze the butt welds before presenting the sleeve parts on the pipeline.

• Leave at any rate ½ pipe removes across (or 4″ least) between the two sleeves.

• Butt the sleeves together and present another sleeve over those using the right sleeve weld technique recorded in MIP-407. The covering sleeve must be in any occasion 12″ long and centered over the basic sleeve closes. The covering sleeve must be inquisitively huge (greater inside estimation) and have the alternative to cover the entire circuit of the basic sleeve. The covering sleeve material and thickness must be resolved to use the greater outside separation across of the basic sleeves.

They can be utilized for interior and outer breaks, erosion, grooves, gouges, scratches, circular segment consumes, covers, flawed circumference welds, and splits. Weight containing sleeves highlight a divider thickness equivalent to or more prominent than required for the most extreme suitable working weight or the full quality of the channel being fixed.

Inspection of Half Pipe Wrap

Every single channel sleeve is exactly broke down and analyzed for gives up before transport. The shipment is totally attempted and checked for strength and adequacy.

Our quality authorities first review the entire shipment of Full Enveloping Steel Sleeves before we dispatch them to our clients. Parts that don’t fulfill our demanding rules are excused rapidly and not moved.
