HALF SOLE SLEEVE

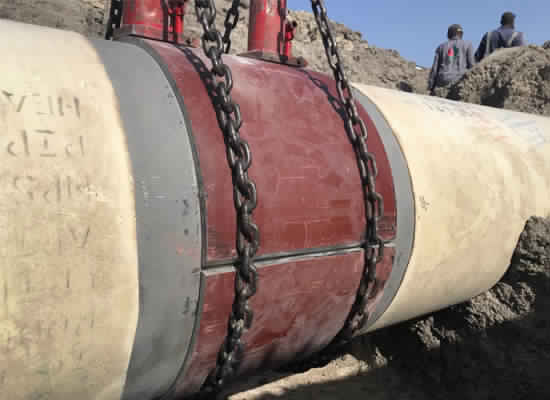

Half Sole Sleeve is perfect for timely upkeep as repairs should be possible without work being interrupted or without closing down the entire pipeline. With the help of Half Sole Sleeve, throughput misfortune can be saved by covering the current lines.

We have been responding to all pipeline sleeve fix related requirements, and queries for over four decades now. And therefore today, Reli Sleeve is one of the leading pioneers producing fix sleeves for the pipeline businesses, be it oil, gas, or waterline ventures. We have a solution for each pipeline-related problem.

We custom-make each Half Sole Sleeve considering every aspect such as divider thickness, and grades of steel plates are to ASTM accreditations just as a longitudinal edge. Half sole Sleeve fix sleeves which are also known as spilled throwing or half wrap are fabricated as per each customer’s needs.

Keeping customer’s prerequisites in mind, Half Sole Sleeve can be produced using 4 accessible evaluations of steel. For example, for spilling and non-spilling surrenders, pressure-evaluated steel sleeves are utilized though auxiliary evaluation steel sleeves are utilized for fortification for a flawed zone. Click here for a Full Encirclement Steel Sleeve.

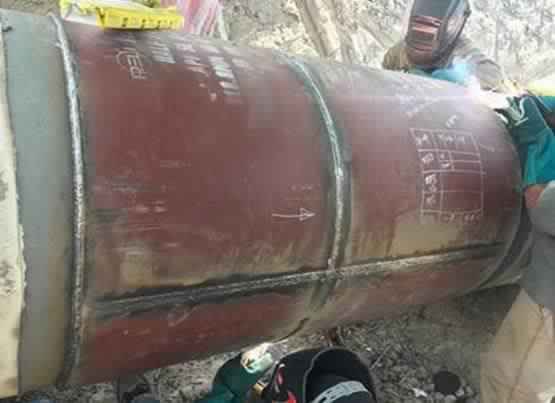

In case of leaks, dents, corrosion, cracks & faulty girth welds, the half sole may be used. Every repair sleeve comes with a backup strip with standard bevels.

Half Sole Sleeve repair solution can be applied for interior as well as external erosion, gouges, imprints, grooves, bend consumes breaks, deficient size welds, cover, and holes. Weight containing sleeves highlight a divider thickness equivalent to or more prominent than required for the most extreme passable working weight or the full quality of the funnel being fixed. The half sole sleeve material is affirmed and the carbon proportion won’t surpass 0.45 percent. Every half sole sleeve portion accompanies one pre-pleated back-up strip. Half sole sleeve can be utilized as a cushion or support for overground channeling, channel tile supports, and fixes (fragments in 90° and 180° circular segments, from 6-crawls to 10 feet long are accessible as specials). Every half sole sleeve has standard slopes with a backup strip and material confirmations. Sleeve closes are square cut.

The ASTM standards are followed consistently for the manufacturing of half repair sleeves from carbon steel sheets of superior quality. Structural standard carbon steel or pressure vessel standard carbon steel is used in the grades below as per every customer’s need:

• ASTM A36
• ASTM A572 GR 42, GR 50, GR55, GR60, GR65
• ASTM A516 GR 55, GR60, GR65, GR70
• ASTM A537 CL1,CL2,CL3
• API 5L GrB, X42, X46, X52, X56, X60, X65, X70,psl1, psl2
• EN10025-s235,s275,s355,s450

In addition to these, the sleeves can also be made in any custom grade as per the client’s usage.

Our Half Sole Sleeve is made from the best quality carbon steel material. We make the half sole sleeve by moving, bite the dust shaping and step slowing down and this results in zero experience of heat. Our unique procedural skillset earned over a number of years makes us the best in the business. In an event that a customer explicitly requests for longitudinal edges of the half sole sleeve to be sloped for welding, it can be very well achieved. Half Sole Sleeve closes have shaved square edges to empower filet welding, albeit square end slope can likewise be made according to customer requirement. Our fix sleeves are made with carbon steel plates with low carbon equivalency to guarantee great weldability.

The inside longitudinal edges of the backing strips can be milled with Half Sole Sleeve. Depth of 1/16 “(.0625) -0” + 1/32 “and width of 5/8” (.625) -0 + 1/16 “on each side. For welding, outer longitudinal edges are 30 ° (+5 °-0 °) beveled.

Backing Strips

Backing strips are industrial carbon layers and have high standard strings, A-569 / A1011 SS GR33 in coils, and cutting lengths with a gross carbon content of 0.15%. 1 1/4″ wide, 16 gauge (.0598) with a tolerance of min. 0.0538 – max. 0658, 10′ high, pre-cut (10-degree gross bend).

ASTM A 569 / A1011 SS GR33 Steel Composition

We can produce Half Sole Sleeve in any custom grades of steel and of any size as per the customer’s application & requirement.

Inspection Of Half Sole Sleeve

Before delivery, every half sleeve is meticulously examined and checked for any defects. For reliability and safety, the shipping process is carefully checked, confirmed, and further executed.

Our quality experts review the entire half sole sleeve shipment first before we deliver it to our customers. If any of the parts happen to not comply with our set operating business standards, such parts are immediately rejected and not shipped.

For all products, Mill check reports must be furnished. Inventory plates are not equipped with a given fixed hardness. Independent testing may be performed on a stock plate to check the hardness. Specific objective measures are available that include: damaging, magnetic particulate matter, penetration of air, ultrasonic, and radiographic.

Longitudinal edges are inclined to 30 degrees (+5 degrees – 0 degrees), with a root face (the place where there is) 1/16″ (+-1/32″). This will be a mechanical kind slope or by plasma burn consuming. Sloped closures are accessible upon demand. The inside distance across every half sole sleeve is manufactured to coordinate the outside breadth of the standard ostensible line pipe. Half sole sleeve is produced with the goal that when two parts of the sleeve are put on the funnel, their all-out perimeter will rise to the boundary of the channel short a hole between the longitudinal edges on either side of 1/16″ (- 1/16″+1/32″) for welding.

Before shipping through India & abroad, each half sleeve pipe is marked as per its size, thickness, dimension & grade of steel. Any half sleeve pipe which does not meet the visual inspection or dimensional tolerance specifications is immediately rejected. Reli Sleeve products are shipped all across India and various countries across the globe.
